PVC Suction Hose
Current Position - Farsion - Products - PVC Suction Hose

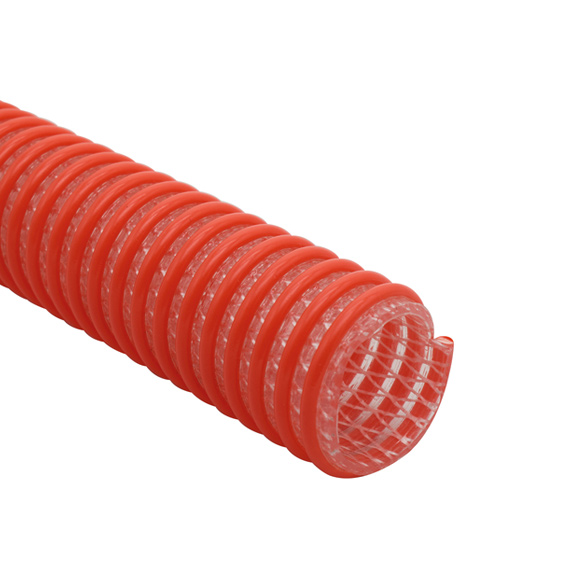

Fabric Reinforced Corrugated Suction Hose
Construction: Transparent PVC Tube,Corrugated Surface
Reinforcement: Orange Or Green PVC Rib Spiral With Fabric Reinforced In Middle
Usage: Water Delivery And Suction Discharge And Sand Suction
Safety Factor: 3:1
Temperature:-10℃ To40℃
Reinforcement: Orange Or Green PVC Rib Spiral With Fabric Reinforced In Middle
Usage: Water Delivery And Suction Discharge And Sand Suction
Safety Factor: 3:1
Temperature:-10℃ To40℃
| Part No | Size | Inner Diameter | Work Pressure | Weight | Length | |
| inch | mm | bar | psi | kg/m | meters/roll | |
| FSFH050 | 2" | 50 | 7 | 105 | 1.00 | 6/15/20/30 |
| FSFH064 | 2 1/2" | 64 | 6 | 90 | 1.40 | 6/15/20/30 |
| FSFH075 | 3" | 75 | 6 | 90 | 1.90 | 6/15/20/30 |
| FSFH102 | 4" | 102 | 5 | 75 | 2.65 | 6/15/20/30 |
| FSFH127 | 5" | 127 | 5 | 75 | 4.40 | 6/12 |
| FSFH152 | 6" | 152 | 4 | 60 | 5.90 | 6/12 |
| FSFH204 | 8" | 204 | 4 | 60 | 8.50 | 6/12 |
